Narrow Zone Programming

To map a boulevard strip, road verge, or narrow zone, ensure your sprinkler is installed near the edge of the sidewalk or road, as our heads can only reach a minimum of 5 feet.

Here are two examples of placement when designing your system:

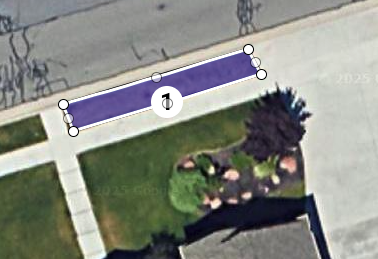

180-degree center placement on zone edge to cover the whole area

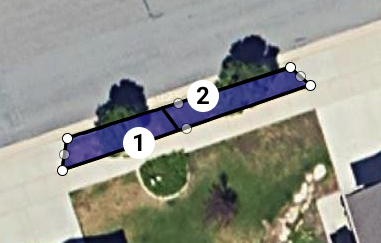

180-degree offset placement on zone edge to cover opposite ends (ex. a tree located in the strip)

To program in the app, open the map for the desired zone and select the point clockwise before the sprinkler hits the hardscape.

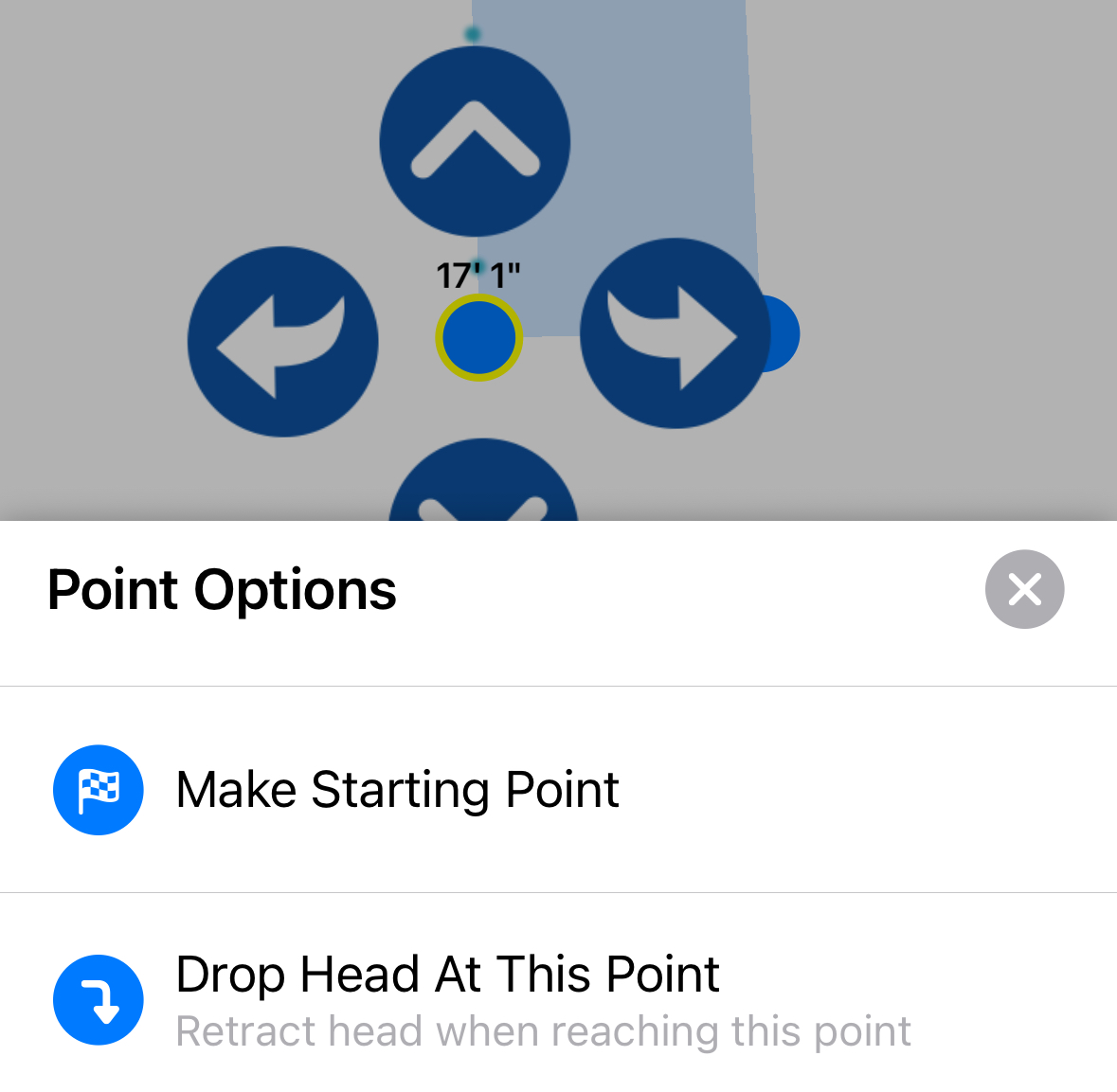

Tap the 'Point Options' gear icon and select 'Drop Head at This Point.'

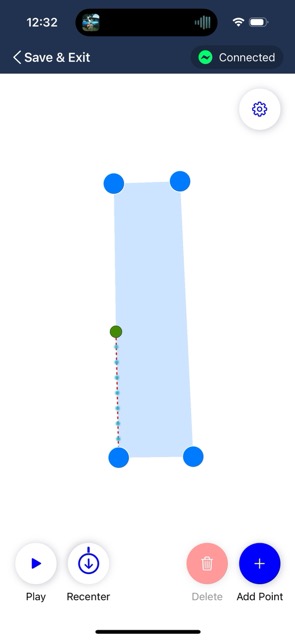

The sprinkler will go underground once it reaches that point and pop up again when it comes back around, indicated by a red dotted line.
