Clean a Filter

Removing Cap for Servicing Nozzle and Filter

• Lift riser up

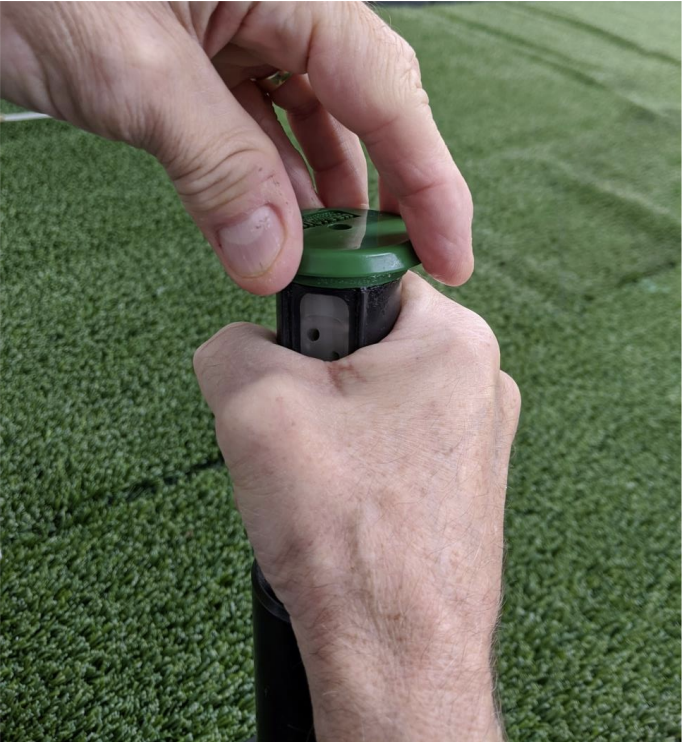

• Grasp riser and remove cap by hand

• Tighten torx screw on cap after reassembly to mitigate leak at the screw


Clogged filter can cause shortened stream distances or uneven spacing

• Remove cap as shown and clean filter (depending on your version, filter may be flat or conical) and or nozzle

• Place filter back inside neck riser (see below for conical filters).

• Hand tighten cap back onto riser until snug.

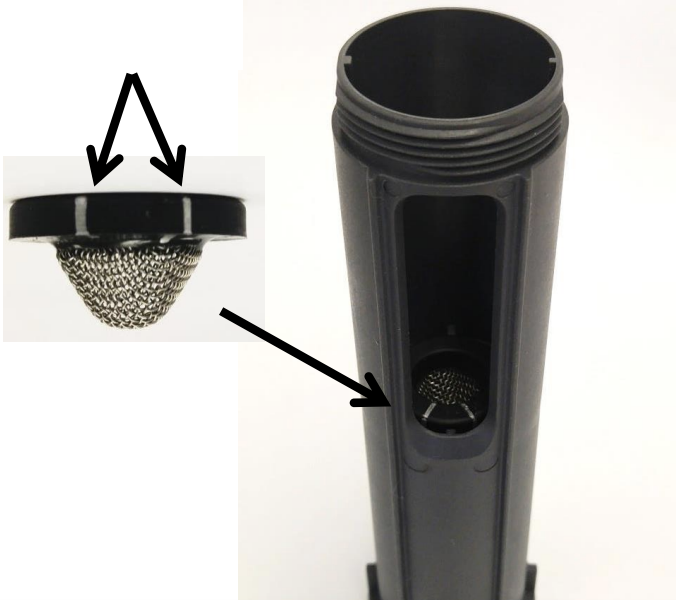

For conical filters (pre-2023 sprinkler heads), align the two white lines with the opening of the neck riser.
